Profile 300
300W WW LED
Optional angle lens:5°/10°/14°/19°/26°/36°/50°/15 ~ 30°/25 ~ 50°
CCT：3200K/4500K/5600K(Optional)
CRI：95
Output：9000 Lm
Framing：Manual
Specification
OPTIC
Source：300W WW LED
Optional angle lens:5°/10°/14°/19°/26°/36°/50°/15 ~ 30°/25 ~ 50°
CCT: 3200K/4500K/5600K(Optional)
CRI: 95
Output：9000 Lm
Source lifetime：>20000 H
SUITABLE FOR THE VENUE
TV station studio, professional stage, interview with reporters, shooting film and television lights, conference halls, etc.
EFFECT
Strobe：1 ~ 25Hz
Framing：Manual
DimCurve：4 kinds
CONTROL & PROGRAM
Channel：1 / 3 / 4 CH
Protocal：DMX512, RDM
Data connector：3 PIN (or 5 PIN) XLR
Display：OLED display
SOFTWARE
Via DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
HOUSING
Structure of metal injection molded parts
Fan cooling
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V ~ 240V 50/60Hz
Rated power：262 W
SIZE & WEIGHT
Size：683 × 302 × 456 mm
N.W：9.1 kgs
Carton Size：740 × 375 × 365 mm
G.W：15 kgs
Photometrics
Dimensions
Accessories

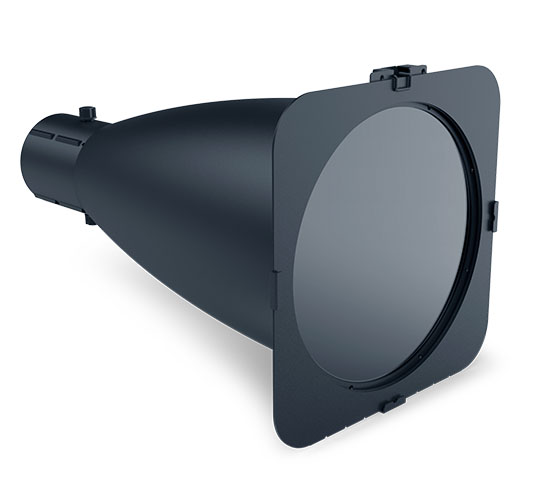

5°lens

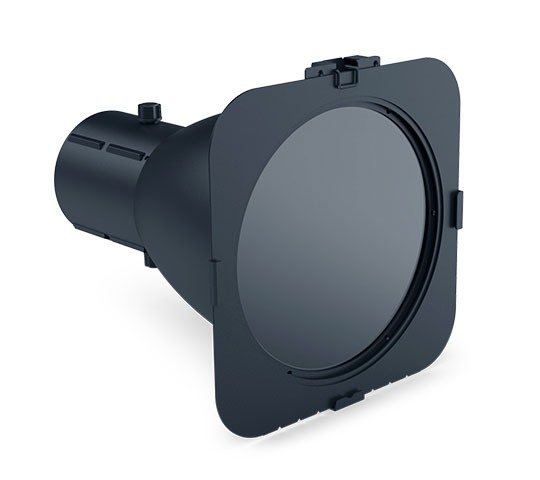

10°lens

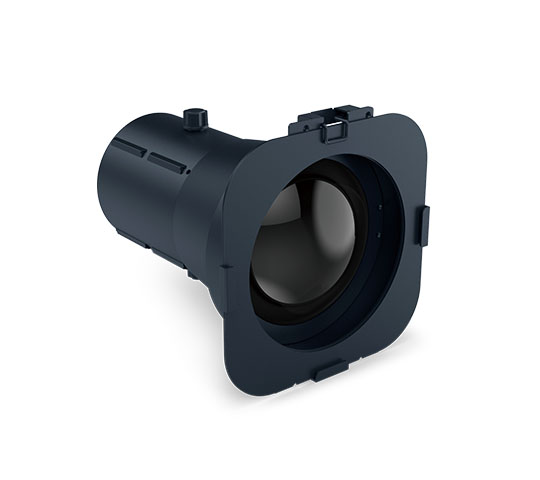

14°lens

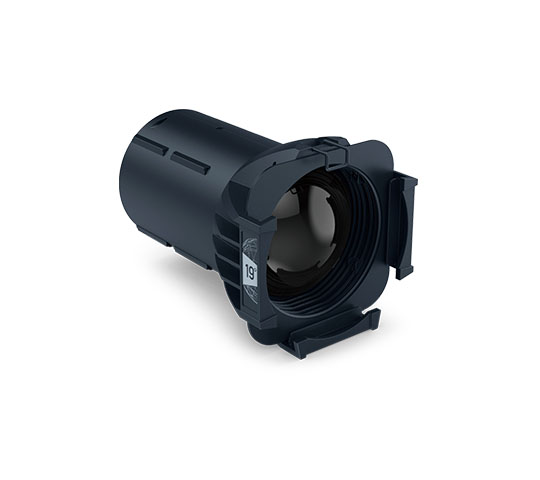

19°lens

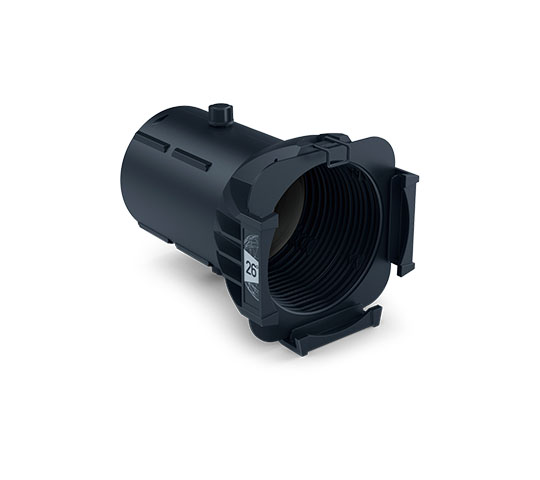

26°lens

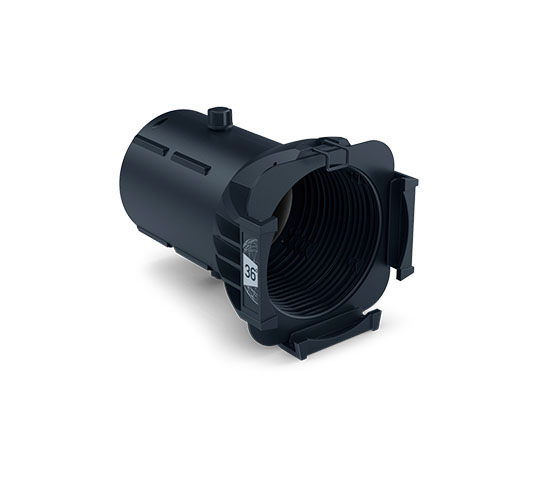

36°lens

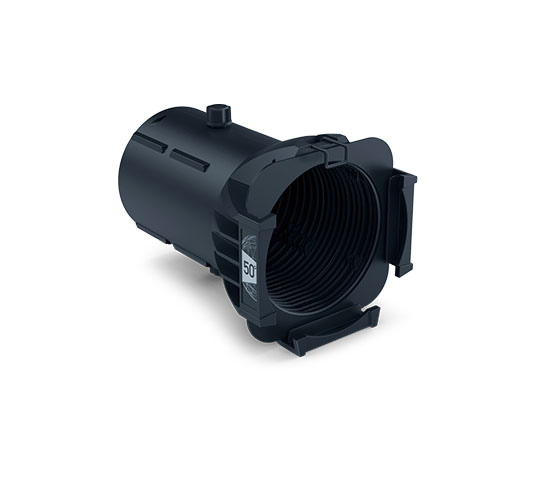

50°lens

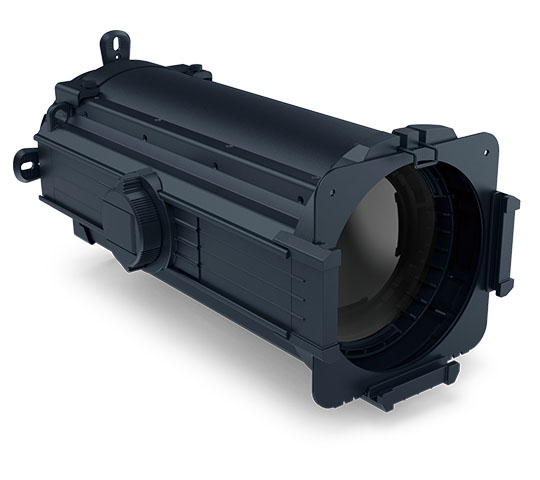

15~30°lens

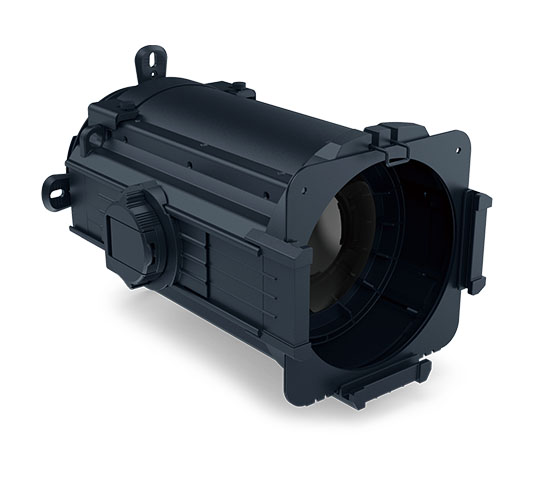

25~50°lens

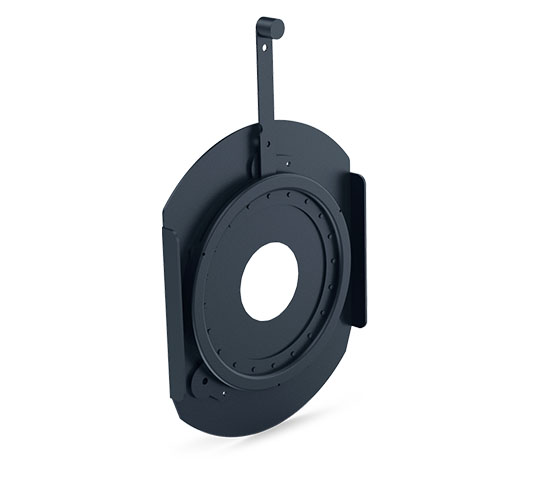

Iris
