Source: 1800W CW LED (High CRI + High Output)
Output：61000 Lm（High Brightness）
Output：40000 Lm（High CRI）
High CRI：Ra-95/ R9-95
Beam angle：3.5~18°
CT：6500 K
Specification
OPTAIC
Source: 1800W CW LED (High CRI + High Output)
Output：61000 Lm（High Brightness）
Output：40000 Lm（High CRI）
CRI：Ra-71（High Brightness）
CRI：Ra-95/ R9-95（High CRI）
Beam angle：3.5~18°
CT：6500 K
Lens diameter：230mm
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED Refresh Frequency：900Hz ~ 25KHz
Plug in Electronic Rotating Gobo
Electronic Color wheel（Open / Red / Blue / Green / Orange / Fuchsia）
Electronic CCT wheel (3000K / 4000K / 5600K / 6500K / 8500K)
Fast switching between high CRI and high brightness
Manual Iris
Electronic dimming/Manual dimming
Dimmer curve: 4
Frost: Light frost + Heavy frost
CONTROL & PROGRAM
Channel：1 / 2 / 7 / 8 CH
Protocal：DMX512，RDM
Data connector：3 PIN XLR (Optional 5 PIN XLR)
Display：2.8 inches touch screen
NFC: The lighting fixtures do not require power on and can be directly set up,diagnosed, and perform other functions through the CKC app
SOFTWARE
Via USB & DMX signal to update
Silent fan, intelligent speed regulation
Intelligent temperature protection to ensure LED service life
PAN & TILT MOVEMENT
PAN：Manual 360°
Tilt: Manual ±35°
HOUSING
Aluminum alloy structure
Fan cooling(intelligent speed regulation)
OTHER
IP rating：IP30
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：2380W
SIZE & WEIGHT
Size：511 × 1024 × 576 mm
N.W：46.6 kgs
Photometrics
Dimensions
Accessories

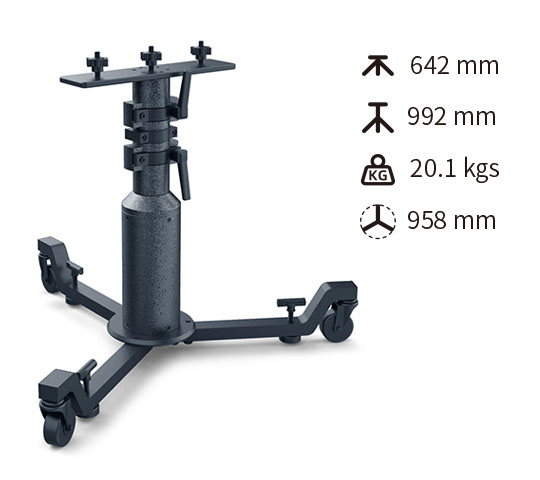

Pulley Tripod Stand

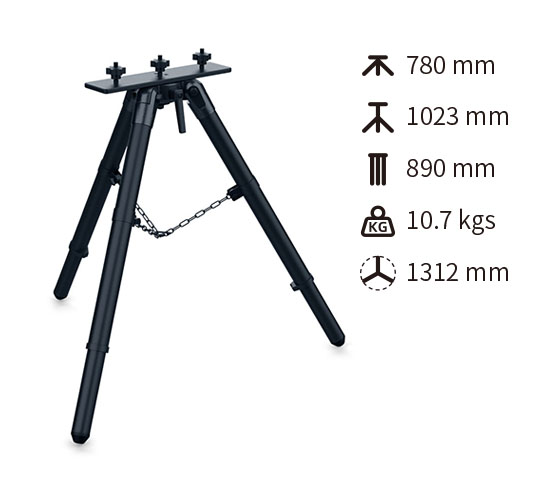

Conventional Tripod Stand

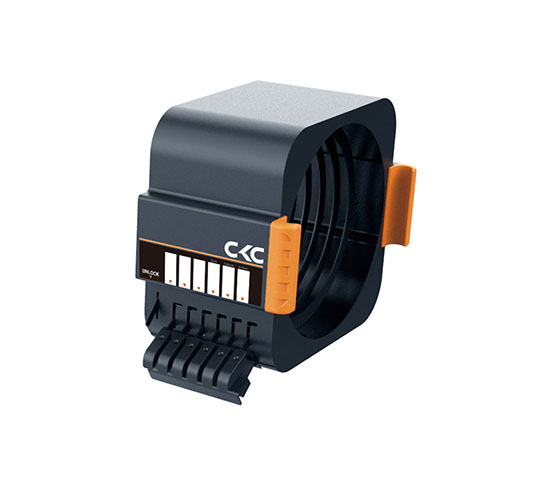

Color gel frame holder

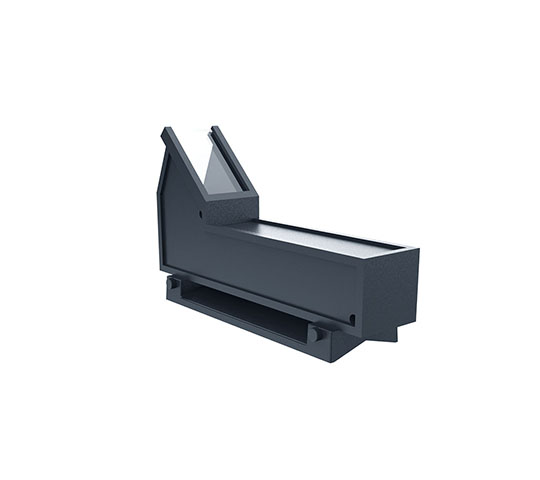

Reflex sight
