Footslim M
Source：120 ×0.3W RGBLA LED
Output：1500Lm
Horizontal field angle：90°
Vertical field angle：70°
CCT：2400 ~ 8500K
CRI：95+
Specification
OPTIC
Source：120 ×0.3W RGBLA LED
Output：1500Lm
Horizontal field angle：90°
Vertical field angle：70°
CCT：2400 ~ 8500K
CRI：95+
Source lifetime：>20000 H
EFFECT
Strobe：1～25Hz
LED refresh rate：900Hz~25KHz
Dimmer Curve：4 kinds
CONTROL & PROGRAM
Channel：1 / 4-1 / 4-2 / 11 / 16 / 13 / 20 / 19 / 32 CH
Protocal：DMX512, RDM
Data connector: 3 PIN (or 5 PIN) XLR
Display: OLED display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Natural heat dissipation
OTHER
IP rating：IP66
Work environment：-40℃—45℃
Startup environment：-20℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：40W
SIZE & WEIGHT
Size：500 × 73 × 47 mm
N.W：2 kgs
Photometrics
Dimensions
Accessories

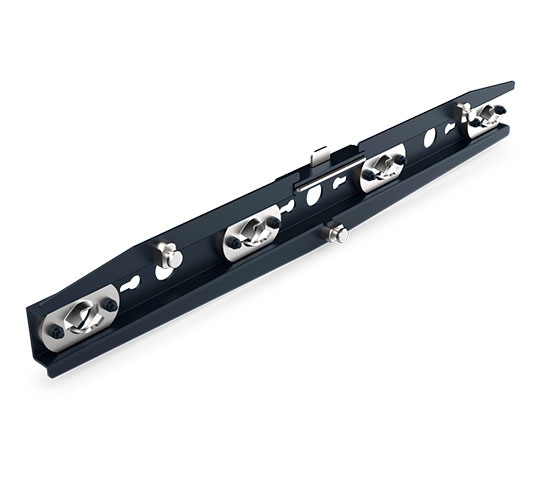

Hanging Bracket

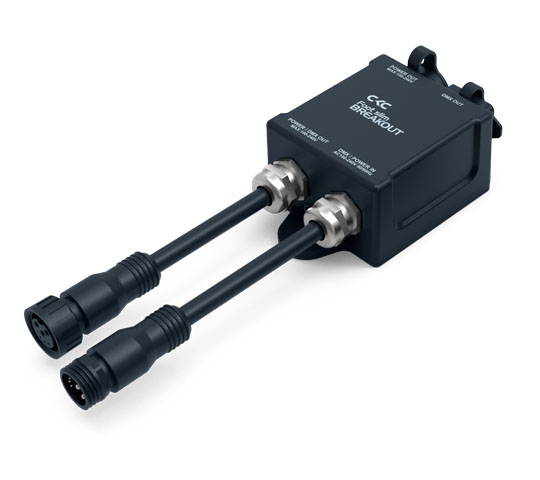

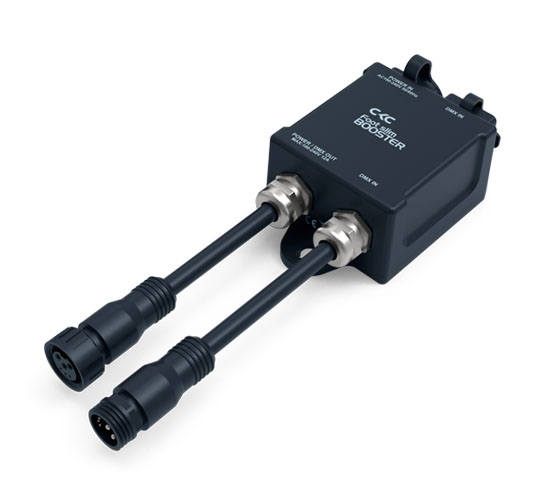

Connectors
