Mini Blinder
84×3.5W RGBWAL LED
Source：84 × 3.5W RGBWAL LED
Output：12700 Lm
Beam angle：46°（Optional：34°）
Field angle：86°（Optional：56°）
CT：2400K ~ 8500K
CRI：92+
IP rating：IP65
Resistant to salt corrosion
Facilitates various splicing shapes
Specification
OPTAL
Source：84 × 3.5W RGBWAL LED
Output：12700 Lm
Beam angle：46°（Optional：34°）
Field angle：86°（Optional：56°）
CT：2400K ~ 8500K
CRI：92+
Lifetime：20000H
EFFECT
Strobe：1～20HZ
LED refresh rate：900HZ~25KHZ
CONTROL & PROGRAM
Channel：1 / 2 / 3 / 4 / 6 / 7 / 13 / 21 / 10-1 / 15-1 / 10-2 / 15-2 CH
Protocal：DMX512, RDM
Data connector: 3PIN XLR
Display: OLED display
SOFTWARE
Via DMX signal to update
Intelligent temperature protection to ensure LED service life
HOUSING
Aluminum alloy structure
Natural heat dissipation
Resistant to salt corrosion
OTHER
IP rating：IP65
Work environment：-40℃—45℃
Startup environment：-40℃—45℃
POWER CONSUMPTION
Voltage：AC 100V-240V 50/60HZ
Rated power：270W
SIZE & WEIGHT
Size：264 × 170 × 301 mm
N.W：4.3 kgs
Effects
Photometrics
Dimensions
Accessories

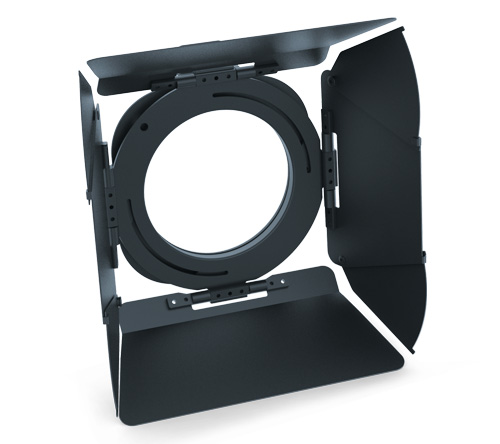

Barndoor
Floor Stand

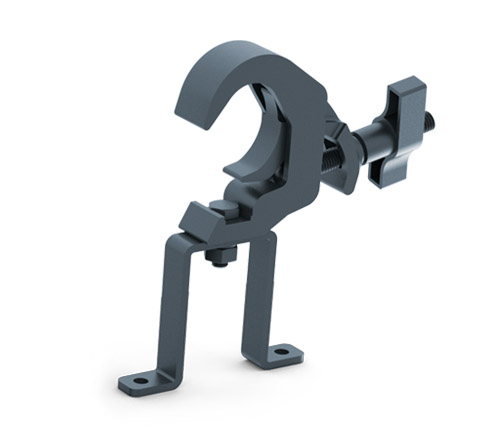

Rear Mount Bracket

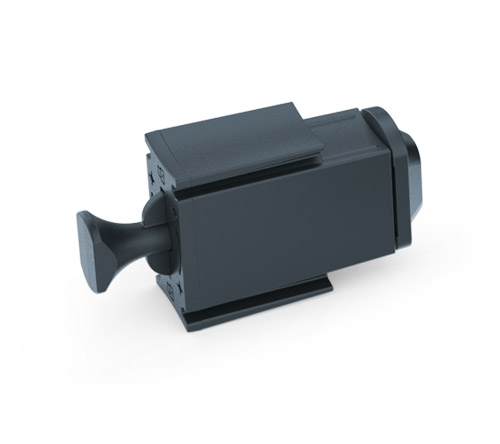

lnterconnect Pack

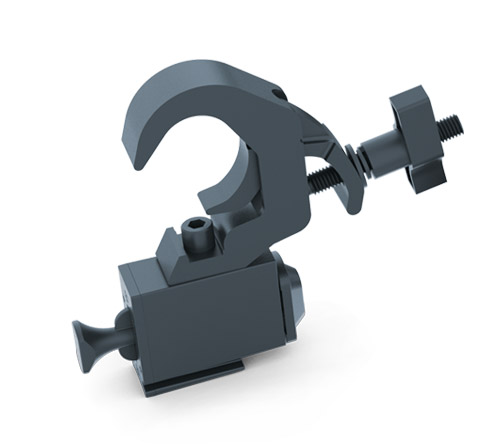

Connector

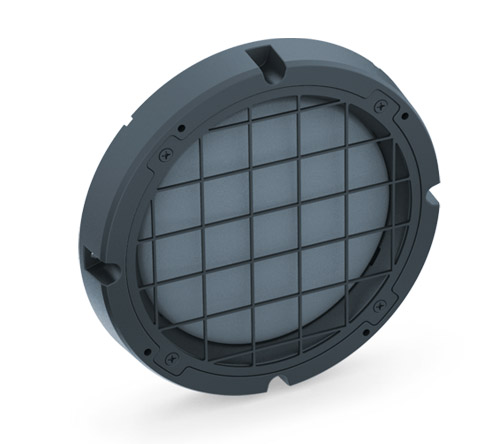

Smoked Clear Lens

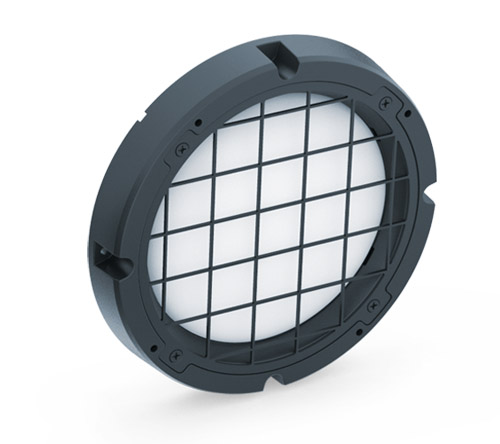

Frosted Lens

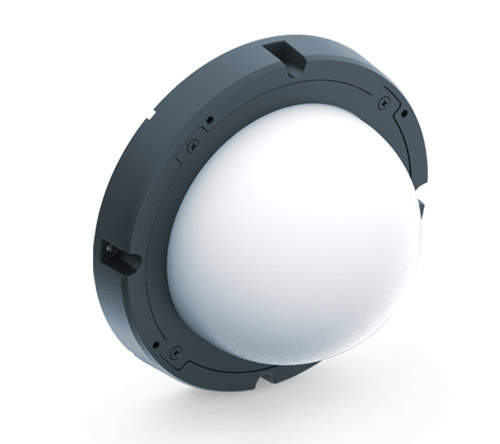

Dome Lens
Bowens Adapter

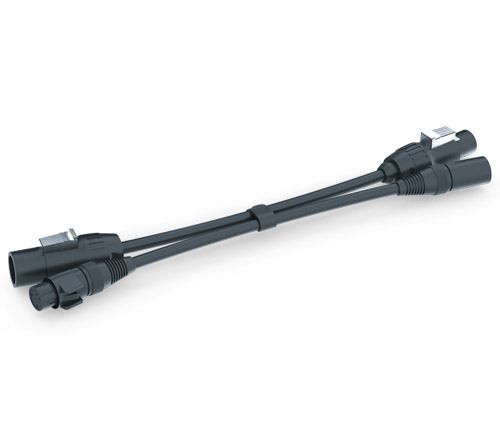

Integrated cable
